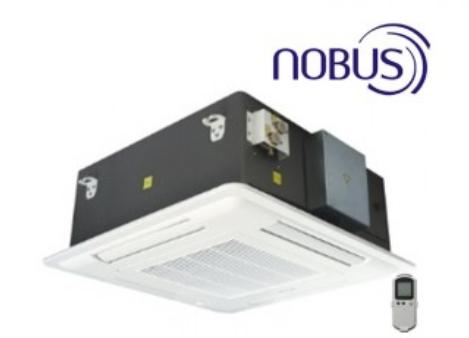

Ventiloconvector tip caseta de tavan cu 4 tevi (ventilator conventional), Nobus model KFA4P-136 4,8 kw cu telecomanda
Durata de livrare: 3 - 7 zile
| Model | KFA4P-136 | ||
| Debit de aer | H | m3/h | 1.360 |
| M | m3/h | 1.030 | |
| L | m3/h | 690 | |
| Capacitate racire | H | kW | 4,80 |
| M | kW | 3,70 | |
| L | kW | 3,00 | |
| Putere sensibila racire | H | kW | 3,40 |
| M | kW | 2,80 | |
| L | kW | 2,40 | |
| Capacitate incalzire Temperatura apa 80/60oC |
H | kW | 4,90 |
| M | kW | 4,30 | |
| L | kW | 3,50 | |
| Putere absorbita | W | 132 | |
| Amperaj | A | 0,57 | |
| Nivel zgomot | dB(A) | 46 | |
| Debit de apa | l/h | 830 | |
| Cadere presiune apa | kPa | 24 | |
| Tip ventilator | Centrifugal | ||
| Motor | Tip | motor cu condensator permanent | |
| Alimentare | 220-230V1Ph/50 Hz | ||
| Schimbator caldura | Tip | Cupru fara sudura extins in aripioare de aluminiu | |
| Randuri | 2 | ||
| Intrare/ Iesire Conducta de apa | 3/4” | ||
| Conducta de condens | 1” | ||
| Dimensiuni / net | Unitate | 705X705X291 | |
| Panou | 830X830X31 | ||
| Masa / net (kg) | 26 | ||
Debit de aer ( m³/h ): 1360
Capacitate de racire (KW): 4.8
Manual de utilizare si instalare ventiloconvector Nobus
Descarca
