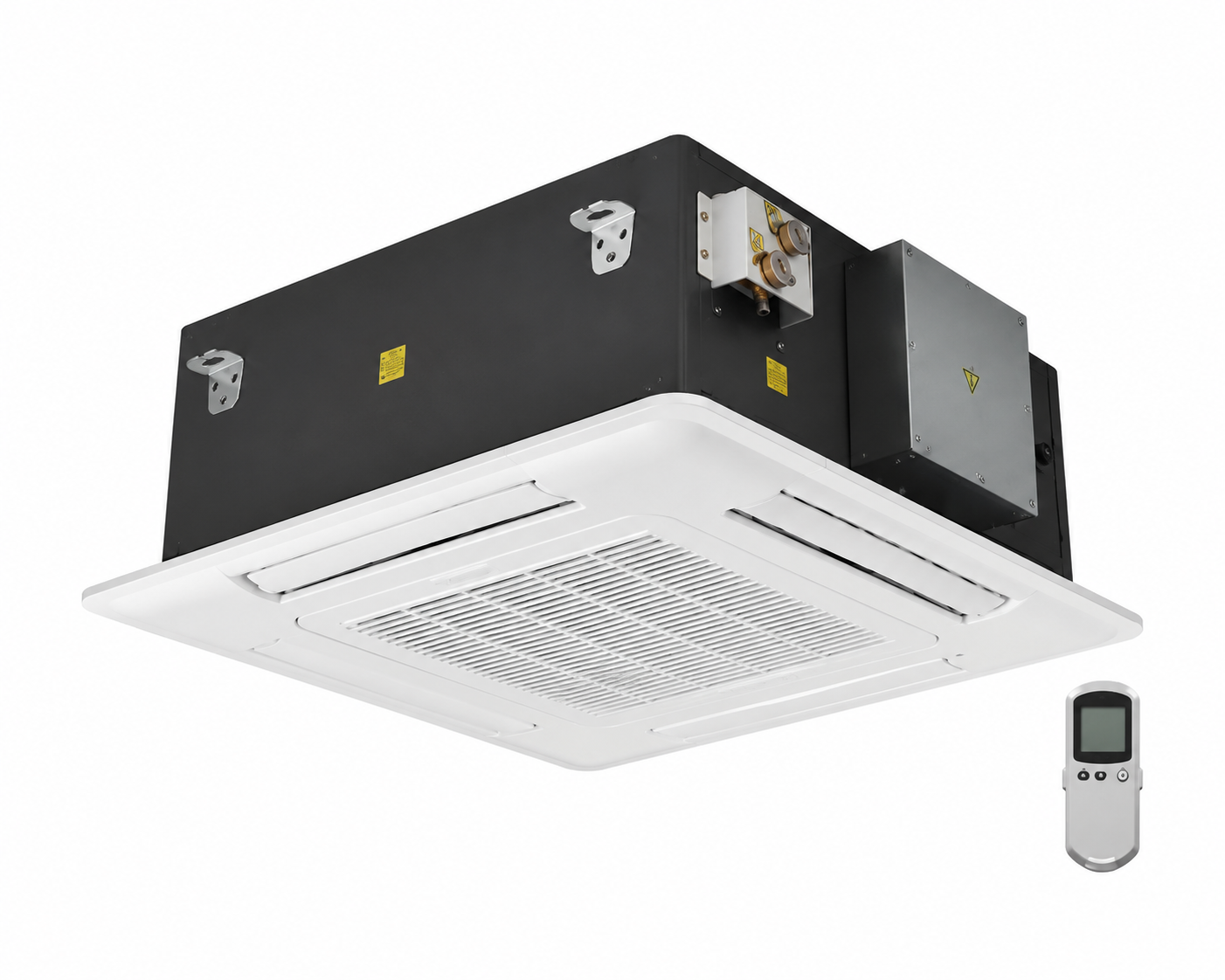

Ventiloconvector tip caseta de tavan cu 4 tevi (ventilator conventional), Nobus model KFA4P-136 4,8 kw cu telecomanda
Durata de livrare: 3 - 7 zile
Model |
KFA4P-136 |
||
Debit de aer |
H |
m3/h |
1.360 |
M |
m3/h |
1.030 |
|
L |
m3/h |
690 |
|
Capacitate racire |
H |
kW |
4,80 |
M |
kW |
3,70 |
|
L |
kW |
3,00 |
|
Putere sensibila racire |
H |
kW |
3,40 |
M |
kW |
2,80 |
|
L |
kW |
2,40 |
|
Capacitate incalzire
|
H |
kW |
4,90 |
M |
kW |
4,30 |
|
L |
kW |
3,50 |
|
Putere absorbita |
W |
132 |
|
Amperaj |
A |
0,57 |
|
Nivel zgomot |
dB(A) |
46 |
|
Debit de apa |
l/h |
830 |
|
Cadere presiune apa |
kPa |
24 |
|
Tip ventilator |
Centrifugal |
||
Motor |
Tip |
motor cu condensator permanent |
|
Alimentare |
220-230V1Ph/50 Hz |
||
Schimbator caldura |
Tip |
Cupru fara sudura extins in aripioare de aluminiu |
|
Randuri |
2 |
||
Intrare/ Iesire Conducta de apa |
3/4” |
||
Conducta de condens |
1” |
||
Dimensiuni / net |
Unitate |
705X705X291 |
|
Panou |
830X830X31 |
||
Masa / net (kg) |
26 |
||
Debit de aer ( m³/h ): 1360
Capacitate de racire (KW): 4.8
Manual de utilizare si instalare ventiloconvector Nobus
Descarca
