Durata de livrare: 24 - 72 ore

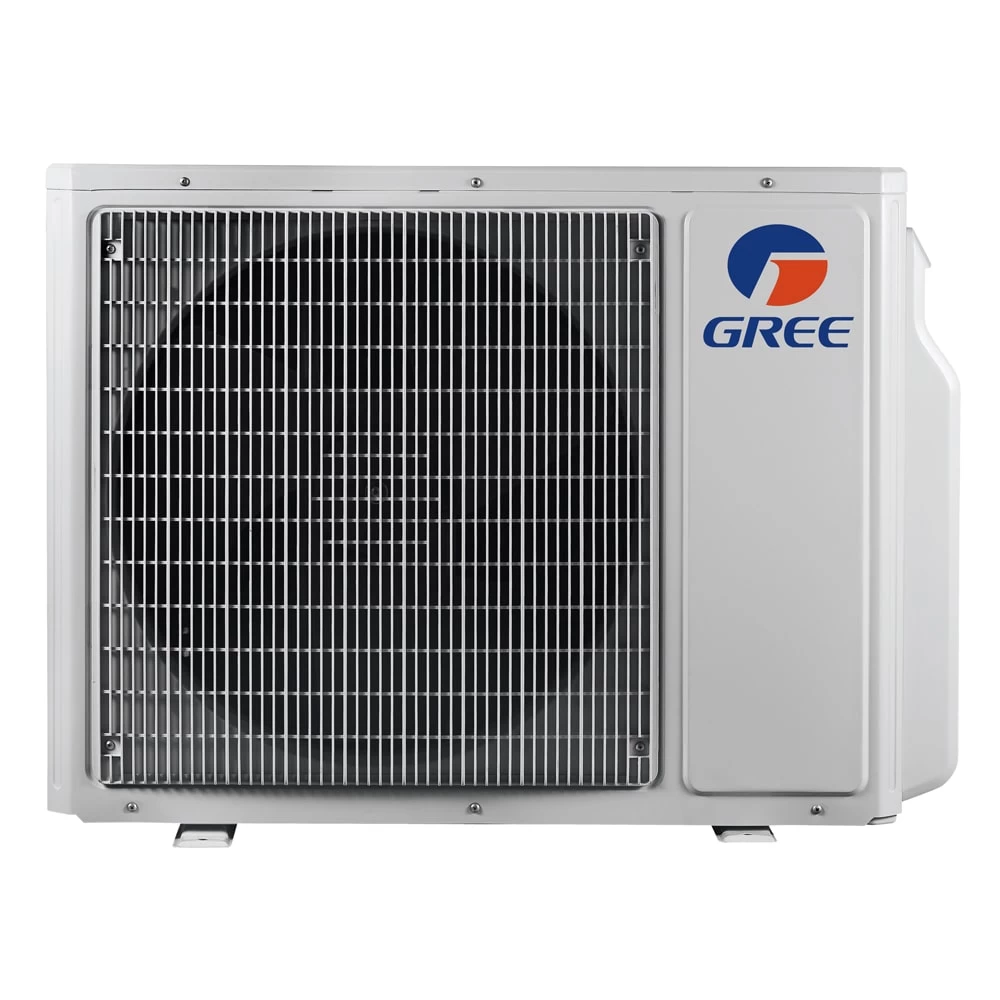

Cod unitate exterioara multisplit | U.M. | GWHD(24)NK6OO (LC)(LH) | |
Functie | Racire/Incalzire | ||
Capacitate | Racire | Btu/h | 24200 (7850 – 32400) |
Incalzire | Btu/h | 29300 (9600 – 30000 | |
SEER/SCOP | W/W | 7.10/4.30 | |
Alimentare | (Ph-V-Hz) | (1 Ph-220V-240V-50Hz) | |
Putere electrica | Racire/Incalzire | kw | 3.40/3.00 |
Curent electric | Racire/Incalzire | A | 15.00/14.60 |
Interval temperatura exterioara de functionare (Min-Max) | Racire | ºC | (-15, +43) |
Incalzire | ºC | ( -22, +24) | |
Dimensiune carcasa | LxlxH | mm | 964x402x660 |
Dimensiune ambalaj | LxlxH | mm | 1032x456x737 |
Greutate neta/bruta | Kg | 47.5 / 52.0 | |
Nivel de presiune acustica | dB/A | 58.0 | |
Nivel de putere acustica | dB/A | 68.0 | |
Traseu frigorific | Diametru conducte lichid/gaz | mm | 3 x 6.35/3 x 9.52 |
Lungime maxima totala/unit. ext. – ultima unit. int. | m | 60/20 | |
Diferenta maxima nivel (unit. ext-unit. Int.) | m | 15 | |
Diferenta maxima nivel (unit int-unit. Int) | m | 15 | |
Numar maxim unitati interioare | buc | 3 | |
Refrigerant | R32 |
Capacitate ( Btu/h ): 24000
