Chiller aer-apa modular 130 Kw, Hyundai model F130
![Chiller aer-apa modular 130 Kw, Hyundai model F130 [1]](https://gomagcdn.ro/domains2/construkt.ro/files/product/original/chiller-aer-apa-modular-130-kw-hyundai-f130-22021-7721.png "Chiller aer-apa modular 130 Kw, Hyundai model F130 [1]")
![Chiller aer-apa modular 130 Kw, Hyundai model F130 [2]](https://gomagcdn.ro/domains2/construkt.ro/files/product/original/chiller-aer-apa-modular-hyundai-i130-130-kw-copie-22021-4669.png "Chiller aer-apa modular 130 Kw, Hyundai model F130 [2]")
![Chiller aer-apa modular 130 Kw, Hyundai model F130 [3]](https://gomagcdn.ro/domains2/construkt.ro/files/product/original/chiller-aer-apa-modular-hyundai-i130-130-kw-copie-22021-3668.png "Chiller aer-apa modular 130 Kw, Hyundai model F130 [3]")
![Chiller aer-apa modular 130 Kw, Hyundai model F130 [4]](https://gomagcdn.ro/domains2/construkt.ro/files/product/original/chiller-aer-apa-modular-hyundai-i130-130-kw-copie-22021-2054.png "Chiller aer-apa modular 130 Kw, Hyundai model F130 [4]")
![Chiller aer-apa modular 130 Kw, Hyundai model F130 [5]](https://gomagcdn.ro/domains2/construkt.ro/files/product/original/chiller-aer-apa-modular-hyundai-i130-130-kw-copie-22021-7617.png "Chiller aer-apa modular 130 Kw, Hyundai model F130 [5]")
![Chiller aer-apa modular 130 Kw, Hyundai model F130 [6]](https://gomagcdn.ro/domains2/construkt.ro/files/product/original/chiller-aer-apa-modular-hyundai-i130-130-kw-copie-22021-4595.png "Chiller aer-apa modular 130 Kw, Hyundai model F130 [6]")
![Chiller aer-apa modular 130 Kw, Hyundai model F130 [0]](https://gomagcdn.ro/domains2/construkt.ro/files/product/medium/chiller-aer-apa-modular-130-kw-hyundai-f130-22021-7721.png "Chiller aer-apa modular 130 Kw, Hyundai model F130 [0]")
![Chiller aer-apa modular 130 Kw, Hyundai model F130 [1]](https://gomagcdn.ro/domains2/construkt.ro/files/product/medium/chiller-aer-apa-modular-hyundai-i130-130-kw-copie-22021-4669.png "Chiller aer-apa modular 130 Kw, Hyundai model F130 [1]")
![Chiller aer-apa modular 130 Kw, Hyundai model F130 [2]](https://gomagcdn.ro/domains2/construkt.ro/files/product/medium/chiller-aer-apa-modular-hyundai-i130-130-kw-copie-22021-3668.png "Chiller aer-apa modular 130 Kw, Hyundai model F130 [2]")
![Chiller aer-apa modular 130 Kw, Hyundai model F130 [3]](https://gomagcdn.ro/domains2/construkt.ro/files/product/medium/chiller-aer-apa-modular-hyundai-i130-130-kw-copie-22021-2054.png "Chiller aer-apa modular 130 Kw, Hyundai model F130 [3]")
![Chiller aer-apa modular 130 Kw, Hyundai model F130 [4]](https://gomagcdn.ro/domains2/construkt.ro/files/product/medium/chiller-aer-apa-modular-hyundai-i130-130-kw-copie-22021-7617.png "Chiller aer-apa modular 130 Kw, Hyundai model F130 [4]")
![Chiller aer-apa modular 130 Kw, Hyundai model F130 [5]](https://gomagcdn.ro/domains2/construkt.ro/files/product/medium/chiller-aer-apa-modular-hyundai-i130-130-kw-copie-22021-4595.png "Chiller aer-apa modular 130 Kw, Hyundai model F130 [5]")
Durata de livrare: 6 - 8 saptamani
- Descriere
- Caracteristici
- Download (1)
- Review-uri (0)
Accesoriu obligatoriu (se da doar 1 bucata panou de control pentru fiecare grup de chillere modulare) - cod 045645-525
· Chillerele modulare Hyundai lucreaza impreuna in regim master/slave ajungand la o capacitate maxima de 1040kW.
· Modulele sunt disponibile in doua modele cu capacitatile de 30; 65 si 130kW
· Functionare in regim de pompa de caldura, putand incalzi spatiile primavara si toamna
· Freon ecologic de inalta eficienta R410A
Fiabilitate garantata de componentele de calitate, de la furnizori renumiti:

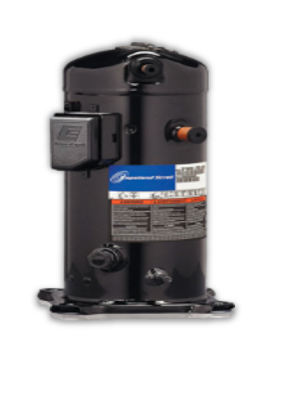

· Compresoare scroll Copeland

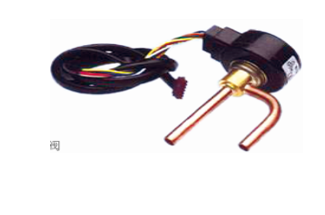

· Vane de laminare electronice cu 500 de trepte Saginomiya (Japonia)
· Vanele de laminare electronice au viteza de reactie mai rapida, acuratete mai mare de reglaj, pentru ca temperatura apei sa fie controlata mai precis.
· Controlul mai precis al temperaturii apei mentinerea contanta a temperaturii in camera imbunatatind confortul
· Compresoarele din fiecare unitate reactioneaza la sarcina reala, urmarita de vanele de laminare, functionand in cascada

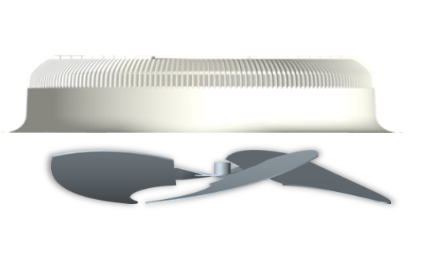

· Condensatorul este tratat impotriva coroziunii (blue fin), este protejat impotriva intemperiilor si a interventiilor neautorizate folosind grile masive din aluminiu, vopsite in culoarea chillerelor

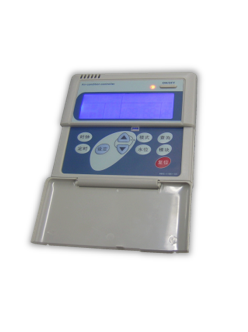

· Panoul de control este simplificat pentru utilizare usoara
| Putere de racire | kW | 130 |
| Putere de incalzire | kW | 140 |
| Alimentare electrica | V/f/Hz | 380V |
| Compresoare | - | Copeland Scroll model ZP144KCE-TFD-522 |
| Numar de compresoare | - | 4 |
| Putere electrica absorbita in regim de racire |
kW | 44 |
| Curent nominal in racire | A | 78 |
| Putere electrica absorbita in regim de incalzire |
kW | 43 |
| Curent nominal in incalzire | A | 76 |
| Putere maxima absorbita | kW | 56 |
| Curent maxim absorbit | A | 102 |
| Refrigerant | - | R410A |
| Tipul schimbatorului Condensator |
- | Tevi de cupru expandate in aripioare de aluminiu |
| Numar de ventilatoare | - | 4 |
| Curent absorbit ventilator | A | 4x4.2 |
| Putere motor ventilator | kW | 4x0.911 |
| Tipul schimbatorului Vaporizator |
- | Multitubular |
| Pierdere de sarcina pe circuitul de apa | kPa | 40 |
| Racorduri flansate | DN | 2x65 |
| Dimnsiune recomandata conducta | DN | 80 |
| Debit de apa | mc/h | 22 |
| Dimensiuni | mm | 2000x2090x1700 |
| Greutate | kg | 1100 |
Putere incalzire chiller: 140 Kw
Echipare chiller: Fara modul hidraulic
Utilizare chiller: Racire si incalzire
Putere racire chiller: 130 Kw
Numar compresoare: 4
Tip agent frigorific: R410A
Gama puterii nominale (kW): 100 - 150
-
Manual tehnic chiller modular aer-apa Hyundai
Descarca
